API-Schnittstelle (Web)

Die BauMaster App bietet eine Token authentifizierte REST API an. Bitte beachten Sie, dass die API Dokumentation wie üblich in Englisch ist.

In der aktuellen Fassung (1.0.2) können Endpunkte für folgende Funktionen angesprochen werden:

Projekte anlegen
Firmen und Kontakte
Attachments (Bilder und Dateien) und PDF-Dokumente (PDF-Protokolle und Berichte)
Projektkosten

Für das Einrichten eines API Keys kontaktieren Sie bitte unseren Support unter support@bau-master.com

BauMaster API

This is the specification of the public API of BauMaster.

Access to the endpoints requires an ApplicationToken generated by BauMaster client.

That ApplicationToken can be revoked in BauMaster client.

You can access the API at: https://api.bau-master.at

You can contact BauMaster at: support@bau-master.com

You can find further information at: https://bau-master.com

In case you need access to a staging environment, please contact us at the mentioned email.

Areas of use

Project: Access to projects

CompanyProfile: Access to company and profiles (contacts)

Profile: Access to profiles (contacts) of companies

ProjectRoom: Access to "Drawings & Documents" or as called in this documentation "project room", which includes attachments, PDF records, uploaded files and more

ProjectCosts: Access to project costs

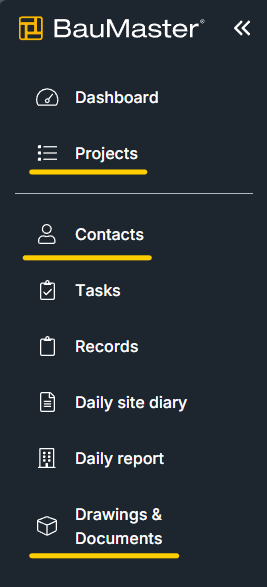

Areas in the frontend, that are accessible via this API

Project

Access to projects

GET /api/ext/projects

Information

Returns a list of all active projects. No search parameters supported.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Response
HTTP Status Codes

Status	Description
200 OK	Success.
	Example Value: [ { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "status": 10, "clientId": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "createdAt": "2023-01-01T00:00:00Z", "projectImage": "string", "number": "4500", "name": "Casino Royal", "description": "This is about building the new Casino Royal in LasVegas", "contractee": "Casino LTD", "currency": 1, "language": "de", "addressSite": "Main square 1, Las Vegas", "addressContractee": "string", "startAt": "2023-01-01T00:00:00Z", "completeAt": "2023-01-01T00:00:00Z", "taxRate": 20 } ]
401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

POST /api/ext/projects

Information

Creates a new project for the client where ID is generated by the server.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
Body Structure

JSON object including following values:

Key	Description
number * string	The number of the project with max. length of 12 characters.
name * string	The name of the project with max. length of 255 characters.
description string	The description of the project.
contractee string	The contractee of the project.
addressContractee string	The address of the contractee.
startAt string	Date (YYYY-MM-DDTHH:mm:ssZ) when the project started.
completeAt string	Date (YYYY-MM-DDTHH:mm:ssZ) when the project ended.
currency * integer	The currency of the project. 1 = EUR (€) 2 = GBP (£) 3 = CHF
language * string	The language of the project. Supported values: "de", "en", "fr"
taxRate * integer	The tax rate in % for that project used for calculation.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "status": 10,
  "clientId": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "createdAt": "2023-01-01T00:00:00Z",
  "projectImage": "string",
  "number": "4500",
  "name": "Casino Royal",
  "description": "This is about building the new Casino Royal in LasVegas",
  "contractee": "Casino LTD",
  "currency": 1,
  "language": "de",
  "addressSite": "Main square 1, Las Vegas",
  "addressContractee": "string",
  "startAt": "2023-01-01T00:00:00Z",
  "completeAt": "2023-01-01T00:00:00Z",
  "taxRate": 20
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

GET /api/ext/projects/{projectId}

Information

Returns one project by ID.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
projectId * string	ID of the project to be returned.

Response
HTTP Status Codes

Status	Description
200 OK	Success.
	Example Value: [ { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "status": 10, "clientId": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "createdAt": "2023-01-01T00:00:00Z", "projectImage": "string", "number": "4500", "name": "Casino Royal", "description": "This is about building the new Casino Royal in LasVegas", "contractee": "Casino LTD", "currency": 1, "language": "de", "addressSite": "Main square 1, Las Vegas", "addressContractee": "string", "startAt": "2023-01-01T00:00:00Z", "completeAt": "2023-01-01T00:00:00Z", "taxRate": 20 } ]
401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

POST /api/ext/projects/{projectId}

Information

Creates a new project for the client where ID is provided by the client.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
projectId * string	ID of the project to be returned. (Format: UUID v4)

Request
Body Structure

JSON object including following values:

Key	Description
number * string	The number of the project with max. length of 12 characters.
name * string	The name of the project with max. length of 255 characters.
description string	The description of the project.
contractee string	The contractee of the project.
addressContractee string	The address of the contractee.
startAt string	Date (YYYY-MM-DDTHH:mm:ssZ) when the project started.
completeAt string	Date (YYYY-MM-DDTHH:mm:ssZ) when the project ended.
currency * integer	The currency of the project. 1 = EUR (€) 2 = GBP (£) 3 = CHF
language * string	The language of the project. Supported values: "de", "en", "fr"
taxRate * integer	The tax rate in % for that project used for calculation.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "status": 10,
  "clientId": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "createdAt": "2023-01-01T00:00:00Z",
  "projectImage": "string",
  "number": "4500",
  "name": "Casino Royal",
  "description": "This is about building the new Casino Royal in LasVegas",
  "contractee": "Casino LTD",
  "currency": 1,
  "language": "de",
  "addressSite": "Main square 1, Las Vegas",
  "addressContractee": "string",
  "startAt": "2023-01-01T00:00:00Z",
  "completeAt": "2023-01-01T00:00:00Z",
  "taxRate": 20
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

PUT /api/ext/projects/{projectId}

Information

Updates one project by ID.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
projectId * string	ID of the project to be updated. (Format: UUID v4)

Request
Body Structure

JSON object including following values:

Key	Description
status integer	The status of the project. 10 = ACTIVE 20 = ARCHIVED 30 = DELETED
changedAt string	Date (YYYY-MM-DDTHH:mm:ssZ) of when the project is updated. If provided, the value is checked against the value on the server and update fails, if it does not match.
number string	The number of the project with max. length of 12 characters.
name string	The name of the project with max. length of 255 characters.
description string	The description of the project.
contractee string	The contractee of the project.
addressContractee string	The address of the contractee.
startAt string	Date (YYYY-MM-DDTHH:mm:ssZ) when the project started.
completeAt string	Date (YYYY-MM-DDTHH:mm:ssZ) when the project ended.
currency integer	The currency of the project. 1 = EUR (€) 2 = GBP (£) 3 = CHF
language string	The language of the project. Supported values: "de", "en", "fr"
taxRate integer	The tax rate in % for that project used for calculation.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "status": 10,
  "clientId": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "createdAt": "2023-01-01T00:00:00Z",
  "projectImage": "string",
  "number": "4500",
  "name": "Casino Royal",
  "description": "This is about building the new Casino Royal in LasVegas",
  "contractee": "Casino LTD",
  "currency": 1,
  "language": "de",
  "addressSite": "Main square 1, Las Vegas",
  "addressContractee": "string",
  "startAt": "2023-01-01T00:00:00Z",
  "completeAt": "2023-01-01T00:00:00Z",
  "taxRate": 20
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

CompanyProfile

Access to company and profiles (contacts)

GET /api/ext/companyProfiles

Information

Returns a list of all active companies and active profiles (contacts).

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Response
HTTP Status Codes

Status	Description
200 OK	Success.
	Example Value: [ { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "address": { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "city": "Las Vegas", "country": "US", "email": "john.doe@company.com", "phone": "01 233343434", "fax": "01 233343434", "street1": "Main road", "street2": "1", "zipCode": "88901" }, "profiles": [ { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "address": { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "firstName": "John", "lastName": "Doe", "email": "john.doe@company.com", "phone": "01 233343434", "mobile": "01 233343434", "fax": "01 233343434" }, "note": "string", "profession": "Polier", "dsgvoShowEmail": true, "dsgvoShowTel": false } ], "name": "Casino LTD", "note": "string" } ]
401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

POST /api/ext/companyProfiles

Information

Creates a new company and optionally new profiles (contacts) for the client where ID is generated by the server.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
Body Structure

JSON object including following values:

Key	Description
address CompanyAddress	CompanyAddress of the company.
profiles * Profile[ ]	Array of Profiles of the company. (If no profiles should be added, pass an empty array like [] )
name * string	The name of the company with max. length of 255 characters.
note string	Optional note.

CompanyAddress

Key	Description
city string	Name of the city with max. length of 255 characters.
country string	Name of the country with max. length of 255 characters.
email string	Valid email address of the profile with max. length of 255 characters.
phone string	Valid phone number of the profile with max. length of 255 characters.
fax string	Valid fax number of the profile with max. length of 255 characters.
street1 string	Name of the street with max. length of 255 characters.
street2 string	Additional information like street number with max. length of 255 characters.
zipCode string	Zip code of the location with max. length of 255 characters.

ProfileAddress

Key	Description
firstName string	First name of profile with max. length of 255 characters.
lastName string	Last name of the country with max. length of 255 characters.
email string	Valid email address of the profile with max. length of 255 characters.
phone string	Valid phone number of the profile with max. length of 255 characters.
mobile string	Valid phone number of the profile with max. length of 255 characters.
fax string	Valid fax number of the profile with max. length of 255 characters.

Profile

Key	Description
address string	ProfileAddress of the profile.
note string	Any note to that profile.
profession string	Profession of the profile with max. length of 255 characters.
dsgvoShowEmail * boolean	A flag if the profile (contact) is agreeing with their email being printed on PDF records.
dsgvoShowTel * boolean	A flag if the profile (contact) is agreeing with their phone number being printed on PDF records.
fax string	Valid fax number of the profile with max. length of 255 characters.
street1 string	Name of the street with max. length of 255 characters.
street2 string	Additional information like street number with max. length of 255 characters.
zipCode string	Zip code of the location with max. length of 255 characters.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "address": {
    "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
    "changedAt": "2023-01-01T00:00:00Z",
    "city": "Las Vegas",
    "country": "US",
    "email": "john.doe@company.com",
    "phone": "01 233343434",
    "fax": "01 233343434",
    "street1": "Main road",
    "street2": "1",
    "zipCode": "88901"
  },
  "profiles": [
    {
      "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
      "changedAt": "2023-01-01T00:00:00Z",
      "address": {
        "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
        "changedAt": "2023-01-01T00:00:00Z",
        "firstName": "John",
        "lastName": "Doe",
        "email": "john.doe@company.com",
        "phone": "01 233343434",
        "mobile": "01 233343434",
        "fax": "01 233343434"
      },
      "note": "string",
      "profession": "Polier",
      "dsgvoShowEmail": true,
      "dsgvoShowTel": false
    }
  ],
  "name": "Casino LTD",
  "note": "string"
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

GET /api/ext/companyProfiles/{companyId}

Information

Returns a company by id with all active profiles (contacts).

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
companyId * string	ID of the company to be returned.

Response
HTTP Status Codes

Status	Description
200 OK	Success.
	Example Value: [ { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "address": { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "city": "Las Vegas", "country": "US", "email": "john.doe@company.com", "phone": "01 233343434", "fax": "01 233343434", "street1": "Main road", "street2": "1", "zipCode": "88901" }, "profiles": [ { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "address": { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "changedAt": "2023-01-01T00:00:00Z", "firstName": "John", "lastName": "Doe", "email": "john.doe@company.com", "phone": "01 233343434", "mobile": "01 233343434", "fax": "01 233343434" }, "note": "string", "profession": "Polier", "dsgvoShowEmail": true, "dsgvoShowTel": false } ], "name": "Casino LTD", "note": "string" } ]
401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

POST /api/ext/companyProfiles/{companyId}

Information

Creates a new company and optionally new profiles (contacts) for the client where ID is provided by the client.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
companyId * string	ID of the company to be created. (Format: UUID v4)

Request
Body Structure

JSON object including following values:

Key	Description
address CompanyAddress	CompanyAddress of the company.
profiles * Profile[ ]	Array of Profiles of the company. (If no profiles should be added, pass an empty array like [] )
name * string	The name of the company with max. length of 255 characters.
note string	Optional note.

CompanyAddress

Key	Description
city string	Name of the city with max. length of 255 characters.
country string	Name of the country with max. length of 255 characters.
email string	Valid email address of the profile with max. length of 255 characters.
phone string	Valid phone number of the profile with max. length of 255 characters.
fax string	Valid fax number of the profile with max. length of 255 characters.
street1 string	Name of the street with max. length of 255 characters.
street2 string	Additional information like street number with max. length of 255 characters.
zipCode string	Zip code of the location with max. length of 255 characters.

ProfileAddress

Key	Description
firstName string	First name of profile with max. length of 255 characters.
lastName string	Last name of the country with max. length of 255 characters.
email string	Valid email address of the profile with max. length of 255 characters.
phone string	Valid phone number of the profile with max. length of 255 characters.
mobile string	Valid phone number of the profile with max. length of 255 characters.
fax string	Valid fax number of the profile with max. length of 255 characters.

Profile

Key	Description
address string	ProfileAddress of the profile.
note string	Any note to that profile.
profession string	Profession of the profile with max. length of 255 characters.
dsgvoShowEmail * boolean	A flag if the profile (contact) is agreeing with their email being printed on PDF records.
dsgvoShowTel * boolean	A flag if the profile (contact) is agreeing with their phone number being printed on PDF records.
fax string	Valid fax number of the profile with max. length of 255 characters.
street1 string	Name of the street with max. length of 255 characters.
street2 string	Additional information like street number with max. length of 255 characters.
zipCode string	Zip code of the location with max. length of 255 characters.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "address": {
    "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
    "changedAt": "2023-01-01T00:00:00Z",
    "city": "Las Vegas",
    "country": "US",
    "email": "john.doe@company.com",
    "phone": "01 233343434",
    "fax": "01 233343434",
    "street1": "Main road",
    "street2": "1",
    "zipCode": "88901"
  },
  "profiles": [
    {
      "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
      "changedAt": "2023-01-01T00:00:00Z",
      "address": {
        "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
        "changedAt": "2023-01-01T00:00:00Z",
        "firstName": "John",
        "lastName": "Doe",
        "email": "john.doe@company.com",
        "phone": "01 233343434",
        "mobile": "01 233343434",
        "fax": "01 233343434"
      },
      "note": "string",
      "profession": "Polier",
      "dsgvoShowEmail": true,
      "dsgvoShowTel": false
    }
  ],
  "name": "Casino LTD",
  "note": "string"
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

PUT /api/ext/companyProfiles/{companyId}

Information

Updates one company and/or profiles (contacts) by ID.

Request
Headers

Name	Description
Authorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
companyId * string	ID of the company to be updated. (Format: UUID v4)

Request
Body Structure

JSON object including following values:

Key	Description
changedAt string	Date (YYYY-MM-DDTHH:mm:ssZ) of when the company is updated. If provided, the value is checked against the value on the server and update fails, if it does not match.
address CompanyAddress	CompanyAddress of the company.
profiles Profile[ ]	Array of Profiles of the company.
name string	The name of the company with max. length of 255 characters.
note string	Optional note.

CompanyAddress

Key	Description
changedAt string	Date (YYYY-MM-DDTHH:mm:ssZ) of when the company address is updated. If provided, the value is checked against the value on the server and update fails, if it does not match.
city string	Name of the city with max. length of 255 characters.
country string	Name of the country with max. length of 255 characters.
email string	Valid email address of the profile with max. length of 255 characters.
phone string	Valid phone number of the profile with max. length of 255 characters.
fax string	Valid fax number of the profile with max. length of 255 characters.
street1 string	Name of the street with max. length of 255 characters.
street2 string	Additional information like street number with max. length of 255 characters.
zipCode string	Zip code of the location with max. length of 255 characters.

ProfileAddress

Key	Description
changedAt string	Date (YYYY-MM-DDTHH:mm:ssZ) of when the profile address is updated. If provided, the value is checked against the value on the server and update fails, if it does not match.
firstName string	First name of profile with max. length of 255 characters.
lastName string	Last name of the country with max. length of 255 characters.
email string	Valid email address of the profile with max. length of 255 characters.
phone string	Valid phone number of the profile with max. length of 255 characters.
mobile string	Valid phone number of the profile with max. length of 255 characters.
fax string	Valid fax number of the profile with max. length of 255 characters.

Profile

Key	Description
changedAt string	Date (YYYY-MM-DDTHH:mm:ssZ) of when the profile address is updated. If provided, the value is checked against the value on the server and update fails, if it does not match.
address string	ProfileAddress of the profile.
note string	Any note to that profile.
profession string	Profession of the profile with max. length of 255 characters.
dsgvoShowEmail * boolean	A flag if the profile (contact) is agreeing with their email being printed on PDF records.
dsgvoShowTel * boolean	A flag if the profile (contact) is agreeing with their phone number being printed on PDF records.
fax string	Valid fax number of the profile with max. length of 255 characters.
street1 string	Name of the street with max. length of 255 characters.
street2 string	Additional information like street number with max. length of 255 characters.
zipCode string	Zip code of the location with max. length of 255 characters.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "address": {
    "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
    "changedAt": "2023-01-01T00:00:00Z",
    "city": "Las Vegas",
    "country": "US",
    "email": "john.doe@company.com",
    "phone": "01 233343434",
    "fax": "01 233343434",
    "street1": "Main road",
    "street2": "1",
    "zipCode": "88901"
  },
  "profiles": [
    {
      "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
      "changedAt": "2023-01-01T00:00:00Z",
      "address": {
        "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
        "changedAt": "2023-01-01T00:00:00Z",
        "firstName": "John",
        "lastName": "Doe",
        "email": "john.doe@company.com",
        "phone": "01 233343434",
        "mobile": "01 233343434",
        "fax": "01 233343434"
      },
      "note": "string",
      "profession": "Polier",
      "dsgvoShowEmail": true,
      "dsgvoShowTel": false
    }
  ],
  "name": "Casino LTD",
  "note": "string"
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
404 NOT FOUND	Company with id not found.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

Profile

Access to profiles (contacts) of companies

POST /api/ext/companyProfiles/{companyId}/profiles/

Information

Adds a new profile (contact) to a company where ID is generated by the server.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
companyId * string	ID of the company the profile should be added to.

Request
Body Structure

JSON object including following values:

Key	Description
address string	ProfileAddress of the profile.
note string	Any note to that profile.
profession string	Profession of the profile with max. length of 255 characters.
dsgvoShowEmail * boolean	A flag if the profile (contact) is agreeing with their email being printed on PDF records.
dsgvoShowTel * boolean	A flag if the profile (contact) is agreeing with their phone number being printed on PDF records.

ProfileAddress

Key	Description
firstName string	First name of profile with max. length of 255 characters.
lastName string	Last name of the country with max. length of 255 characters.
email string	Valid email address of the profile with max. length of 255 characters.
phone string	Valid phone number of the profile with max. length of 255 characters.
mobile string	Valid phone number of the profile with max. length of 255 characters.
fax string	Valid fax number of the profile with max. length of 255 characters.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "address": {
    "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
    "changedAt": "2023-01-01T00:00:00Z",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@company.com",
    "phone": "01 233343434",
    "mobile": "01 233343434",
    "fax": "01 233343434"
  },
  "note": "string",
  "profession": "Polier",
  "dsgvoShowEmail": true,
  "dsgvoShowTel": false
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

GET /api/ext/companyProfiles/{companyId}/profiles/{profileId}

Information

Returns a profile (contact) of a company by ID.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
companyId * string	ID of the company.
profileId * string	ID of the profile.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "address": {
    "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
    "changedAt": "2023-01-01T00:00:00Z",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@company.com",
    "phone": "01 233343434",
    "mobile": "01 233343434",
    "fax": "01 233343434"
  },
  "note": "string",
  "profession": "Polier",
  "dsgvoShowEmail": true,
  "dsgvoShowTel": false
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

POST /api/ext/companyProfiles/{companyId}/profiles/{profileId}

Information

Adds a new profile (contact) to a company where ID is provided by the client.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
companyId * string	ID of the company the profile should be added to.
profileId * string	ID of the profile to be created. (Format: UUID v4)

Request
Body Structure

JSON object including following values:

Key	Description
address string	ProfileAddress of the profile.
note string	Any note to that profile.
profession string	Profession of the profile with max. length of 255 characters.
dsgvoShowEmail * boolean	A flag if the profile (contact) is agreeing with their email being printed on PDF records.
dsgvoShowTel * boolean	A flag if the profile (contact) is agreeing with their phone number being printed on PDF records.

ProfileAddress

Key	Description
firstName string	First name of profile with max. length of 255 characters.
lastName string	Last name of the country with max. length of 255 characters.
email string	Valid email address of the profile with max. length of 255 characters.
phone string	Valid phone number of the profile with max. length of 255 characters.
mobile string	Valid phone number of the profile with max. length of 255 characters.
fax string	Valid fax number of the profile with max. length of 255 characters.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "address": {
    "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
    "changedAt": "2023-01-01T00:00:00Z",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@company.com",
    "phone": "01 233343434",
    "mobile": "01 233343434",
    "fax": "01 233343434"
  },
  "note": "string",
  "profession": "Polier",
  "dsgvoShowEmail": true,
  "dsgvoShowTel": false
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

PUT /api/ext/companyProfiles/{companyId}/profiles/{profileId}

Information

Updates one profile (contact) of a company by ID.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
companyId * string	ID of the company. (Format: UUID v4)
profileId * string	ID of the profile to be updated. (Format: UUID v4)

Request
Body Structure

JSON object including following values:

Key	Description
changedAt string	Date (YYYY-MM-DDTHH:mm:ssZ) of when the company address is updated. If provided, the value is checked against the value on the server and update fails, if it does not match.
address string	ProfileAddress of the profile.
note string	Any note to that profile.
profession string	Profession of the profile with max. length of 255 characters.
dsgvoShowEmail * boolean	A flag if the profile (contact) is agreeing with their email being printed on PDF records.
dsgvoShowTel * boolean	A flag if the profile (contact) is agreeing with their phone number being printed on PDF records.

ProfileAddress

Key	Description
changedAt string	Date (YYYY-MM-DDTHH:mm:ssZ) of when the profile address is updated. If provided, the value is checked against the value on the server and update fails, if it does not match.
firstName string	First name of profile with max. length of 255 characters.
lastName string	Last name of the country with max. length of 255 characters.
email string	Valid email address of the profile with max. length of 255 characters.
phone string	Valid phone number of the profile with max. length of 255 characters.
mobile string	Valid phone number of the profile with max. length of 255 characters.
fax string	Valid fax number of the profile with max. length of 255 characters.

Response
HTTP Status Codes

Status Description

200

Success.

Example Value:

{
  "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
  "changedAt": "2023-01-01T00:00:00Z",
  "address": {
    "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510",
    "changedAt": "2023-01-01T00:00:00Z",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@company.com",
    "phone": "01 233343434",
    "mobile": "01 233343434",
    "fax": "01 233343434"
  },
  "note": "string",
  "profession": "Polier",
  "dsgvoShowEmail": true,
  "dsgvoShowTel": false
}

401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
404 NOT FOUND	Company with id not found.
422 UNPROCESSABLE ENTITY	Validation error.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

ProjectRoom

Access to project room of a project, which includes attachments, PDF records, uploaded files and more

GET /api/ext/projectRoom/{projectId}

Information

Returns the project room of one project by ID. The project room includes all attachments, PDF records, uploaded files and more.

It returns only data not the attachments themselves. The data contains the URLs to download the attachments. The file download requires the same authentication as this API.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
projectId * string	ID of the project to return data for.

Response
HTTP Status Codes

Status	Description
200 OK	Success.
	Example Value: { "id": "bc6b821d-ee55-4ddf-a23b-f93d6192256510", "ProjectRoom": { "PdfPlans": { "additionalProp1": { "additionalProp1": { "name": "string", "url": "string" }, "additionalProp2": { "name": "string", "url": "string" }, "additionalProp3": { "name": "string", "url": "string" } }, "additionalProp2": { "additionalProp1": { "name": "string", "url": "string" }, "additionalProp2": { "name": "string", "url": "string" }, "additionalProp3": { "name": "string", "url": "string" } }, "additionalProp3": { "additionalProp1": { "name": "string", "url": "string" }, "additionalProp2": { "name": "string", "url": "string" }, "additionalProp3": { "name": "string", "url": "string" } } }, "ProjectImages": [ { "name": "string", "url": "string" } ] }, "Reports": { "PdfReports": [ { "name": "string", "url": "string" } ], "Attachments": [ { "name": "string", "url": "string" } ] }, "Protocols": { "PdfProtocols": [ { "name": "string", "url": "string" } ], "Attachments": [ { "name": "string", "url": "string" } ] } }
401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required

ProjectCosts

Retrieves a summary of all costs for a given project, aggregated from its record entries.

GET /api/ext/projectCosts/{projectId}

Information

Retrieves a summary of all costs for a given project, aggregated from its record entries.

Request
Query Parameter

Key	Description
bmAuthorization * string	Must be "Token <appToken>" , where <appToken> can be obtained in BauMaster client or from our Support (support@bau-master.com)

Request
URI Parameter

Key	Description
projectId * string	ID of the project to return data for.

Response
HTTP Status Codes

Status	Description
200 OK	Success.
	Example Value: { "id": "550e8400-e29b-41d4-a716-446655440000", "taxRate": 19, "totalNetCosts": 12500.00, "totalCosts": 14875.00, "costs": [ { "company": "Müller Bau GmbH", "craft": "Carpentry", "entryNumber": "1.1", "title": "Timber framing", "description": "Supply and installation of timber frame structure", "isTask": false, "netCosts": 8000.00, "taxCosts": 1520.00 }, { "company": "Schmidt Electric", "craft": "Electrical", "entryNumber": "2.3", "title": "Wiring", "description": null, "isTask": true, "netCosts": 4500.00, "taxCosts": 855.00 } ] }
401 UNAUTHORIZED	Invalid application token.
403 FORBIDDEN	Access denied regardless of authorization status.
500 INTERNAL SERVICE ERROR	Unexpected service interruption.

* Required
